MODEL  l  DRYER DRUM  l  HOT BIN  l  PUGMILL MIXER
MODEL

HOSAN ASPHALT MIXING PLANT CAPABILITY

The intrinsic design of Asphalt Mixing Plant must be committed to production of quality ASPHALT concrete which proves longer life of paved road. As a leading manufacturers of Asphalt Mixing Plant, we have developed several critical improvement of our equipment in order to adhere the criteria set forth by contractors and environment authorities.

  In today's competitive global construction market place, contractors look for ways to economize and streamline their operation avoiding claim for poor quality of pavement project.

  For every profit-making qualified contractors of roads and highways. we are pleased to ask you to attest our  technically improved ASPHALT MIXING PLANT.

MODEL HSAP-500A HSAP-800A HSAP-1000A HSAP-1500A HSAP-2000A HSAP-3000A
Capacity(T/H) 30~40 45~60 60~80 90~120 120~160 180~220
Agg-Feeding system Cld Bins cold Conveyor
(T/H)
80 100 120 150 180 300
Hot Elevator (T/H) 40 70 90 120 160 250

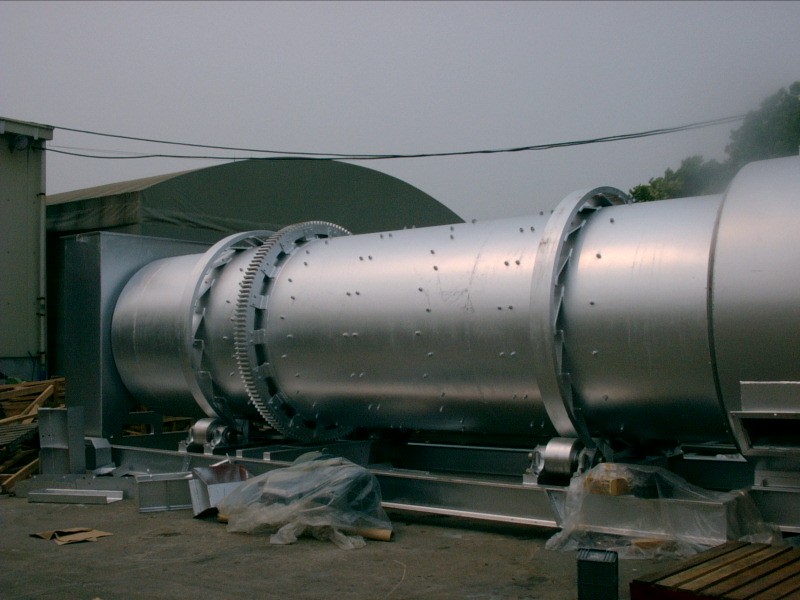

Drying System Dryer(mm) ¥Õ1300 x 4500 ¥Õ1500 x 6100 ¥Õ1670 x 6500 ¥Õ2000 x 7500 ¥Õ2250 x 8500 ¥Õ2750 x 10980

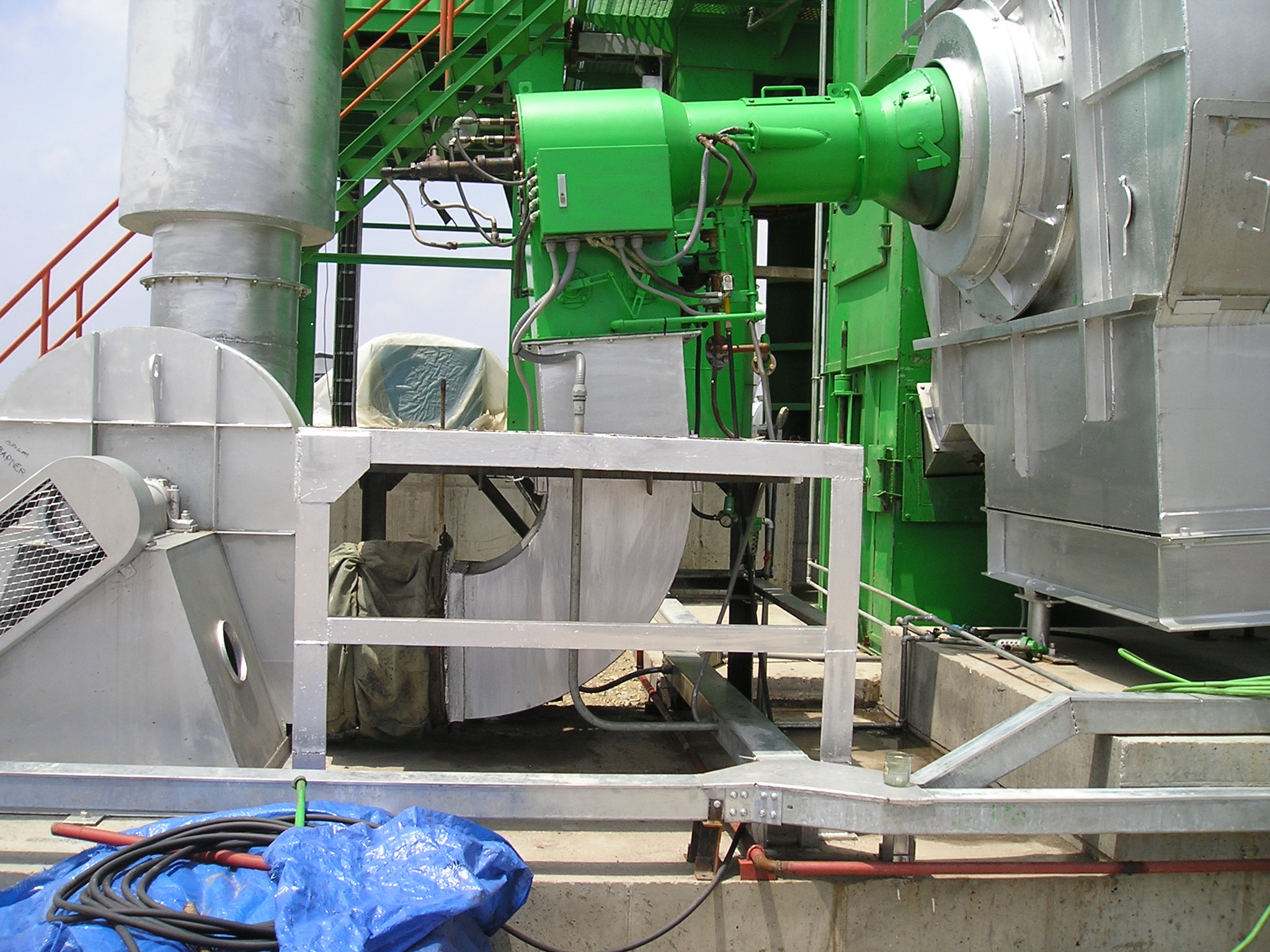

Burner Specially improved complete combustion burner system
Turbo Blower 33§©/min x
700§®Aq
50§©/min x
700§®Aq
65§©/min x
700§®Aq
100§©/min x
750§®Aq
130§©/min x
750§®Aq
200§©/min x
750§®Aq

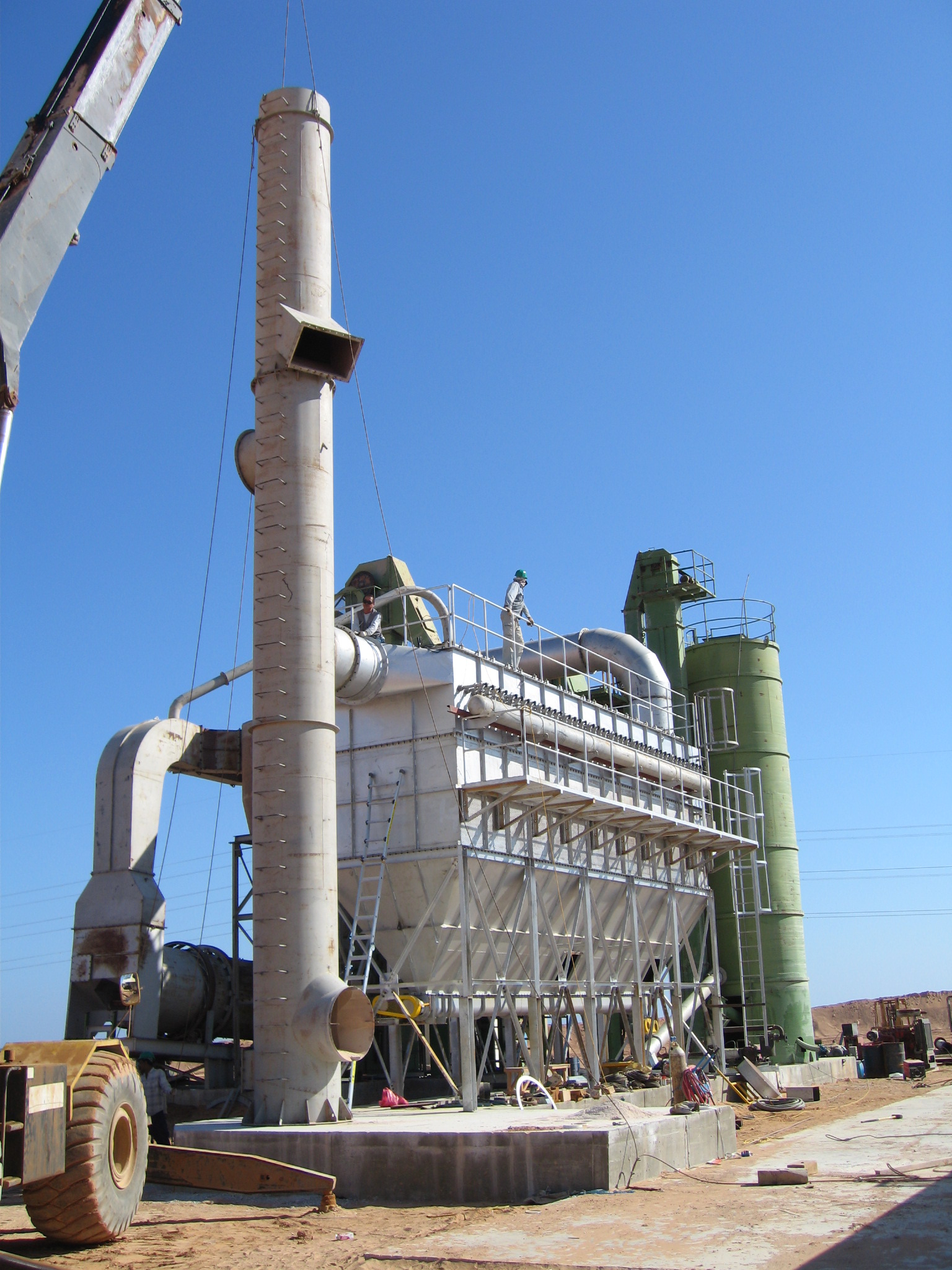

Dust Collector Bag Fillter Type Incorporated with Cyclone Collector
Mixer Pugmill Mixer (§¸) 500 800 1000 1500 2000 3000
